32 shades of gray

Humans don’t interpret gray tones very well – the human visual system perceiving approximately 32 shades of gray. So an 8-bit image with 256 tones already contains too much information for humans to interpret. That’s why you don’t really see any more clarity in a 10-bit image with 1024 shades of gray than a 5-bit image with 32 shades of gray. But why do we only see approximately 32 shades of gray?

It is the responsibility of the rod receptors to deal with black and white. The rods are far less precise than the cones which deal with colour, but are more sensitive to low levels of light that are typically associated with being able to see in a dimly lit room, or at night. There are supposedly over 100 million rods in the retina, but this doesn’t help distinguish any more than 30-32 shades of gray. This may stem from evolutionary needs – in the natural world there are very few things that are actually gray – stones, some trunks of trees, weathered wood, so there was very little need to distinguish between more than a few shades of gray. From an evolutionary perspective, humans needed night vision because they lived half their lives in darkness. This advantage remained crucial, apart perhaps form the past 150 years or so.

The rods work so well that dark adapted humans can detect just a handful of photons hitting the retina. It is likely this is the reason there are so many rods in the retina – so that in exceedingly low levels of light as many as possible of the scarce photons are captured by rods. Figure 1 illustrates two grayscale optical illusions, which rely on our eyes insensitivity to shades of gray. In the image on the left, the horizontal strip of gray is actually the same shade throughout, although our eyes deceive us into thinking that it is light on the left and dark on the right. in the image on the right, the inner boxes are all the same shade of gray, even though they appear to be different.

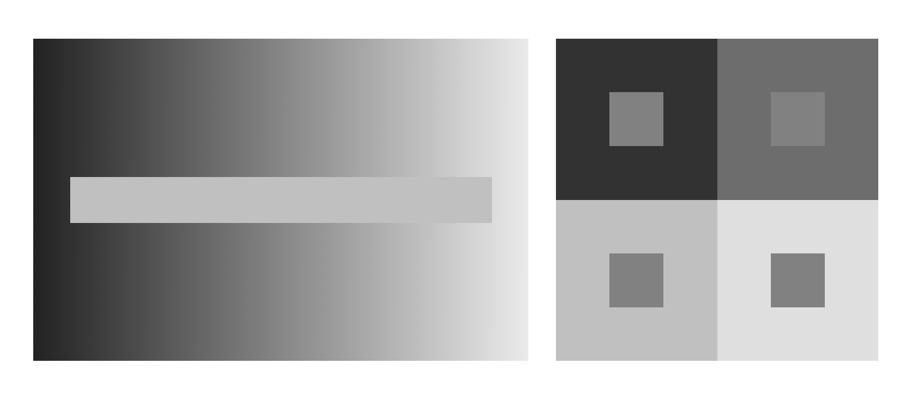

Fig.1: Optical illusions

To illustrate this further, consider the series of images in the figure below. The first image is the original colour image. The middle image shows that image converted to grayscale with 256 shades of gray. The image on the right shows the colour image converted to 4-bit grayscale, i.e. 16 shades of gray. Is there any perceptual difference between Fig.2b and 2c? Hardly.

Fig.2a: Original colour
Fig.2b: 8-bit grayscale
Fig.2c: 4-bit grayscale

You will see articles that suggest humans can see anywhere from 500-750 shades of gray. They are usually articles related to radiology, where radiologists interpret images like x-rays. The machines that take these medical images are capable of producing 10-bit or 12-bit images which are interpreted on systems capable of improving contrast. There may of course be people that can see more shades of gray, just like there are people with a condition called aphakia that possess ultraviolet vision (aphakia is a lack of a lens which normally blocks UV light, so they are able to perceive wavelengths up to 300nm). There are also tetrachromats who posses a fourth cone cell, allowing them to see up to 100 million colours.


30-odd shades of gray – the importance of gray in vision

Gray (or grey) means a colour “without colour”… and it is a colour. But in terms of image processing we more commonly use gray as a term synonymous to monochromatic (although monochrome means single colour). Now grayscale images can potentially come with limitless levels of gray, but while this is practical for a machine, it’s not useful for humans. Why? Because the structure of human eyes is composed of a system for conveying colour information. This allows humans to distinguish between approximately 10 million colours, but only about 30 shades of gray.

The human eye has two core forms of photoreceptor cells: rods and cones. Cones deal with visioning colour, while rods allow us to see grayscale in low-light conditions, e.g. night. The human eye has three types of cones sensitive to magenta, green, and yellow-to-red. Each of these cones react to an interval of different wavelengths, for example blue light stimulates the green receptors. However, of all the possible wavelengths of light, our eyes detect only a small band, typically in the range of 380-720 nanometres, what we known as the visible spectrum. The brain then combines signals from the receptors to give us the impression of colour. So every person will perceive colours slightly differently, and this might also be different depending on location, or even culture.

After the light is absorbed by the cones, the responses are transformed into three signals:  a black-white (achromatic) signal and two colour-difference signals: a red-green and a blue-yellow. This theory was put forward by German physiologist Ewald Hering in the late 19th century. It is important for the vision system to properly reproduce blacks, grays, and whites. Deviations from these norms are usually very noticeable, and even a small amount of hue can produce a noticeable defect. Consider the following image which contains a number of regions that are white, gray, and black.

A fjord in Norway

Now consider the photograph with a slight blue colour cast. The whites, grays, *and* blacks have taken on the cast (giving the photograph a very cold feel to it).

Photograph of a fjord in Norway with a cast added.

The grayscale portion of our vision also provides contrast, without which images would have very little depth. This is synonymous with removing the intensity portion of an image. Consider the following image of some rail snowblowers on the Oslo-Bergen railway in Norway.

Rail snowblowers on the Oslo-Bergen railway in Norway.

Now, let’s take away the intensity component (by converting it to HSB, and replacing the B component with white, i.e. 255). This is what you get:

Rail snowblowers on the Oslo-Bergen railway in Norway. Photo has intensity component removed.

The image shows the hue and saturation components, but no contrast, making it appear extremely flat. The other issue is that sharpness depends much more on the luminance than the chrominance component of images (as you will also notice in the example above). It does make a nice art filter though.
